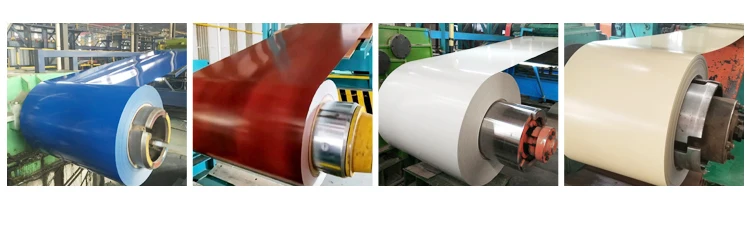

Color Coated 0.12-0.80mm RAL Prepainted Galvanized Steel Coil PPGI/PPGL Steel Coil Product

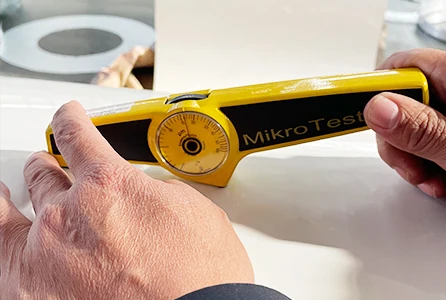

Substrate preparation: Hot dip galvanized steel sheet (GI) is used as the substrate, and the zinc layer thickness is usually 10-275 g/m² to provide basic corrosion protection. Pretreatment: After unwinding and welding the substrate into continuous strip, degreasing, cleaning and chemical conversion treatment (such as phosphating and chromate passivation) are carried out in order to remove surface impurities and enhance the adhesion of the coating. Coating and baking: the "double coating and baking" process is adopted. The primer is coated on the pretreated substrate and baked and cured, and then the top coat is covered (commonly used polyester PE, silicon modified polyester SMP, high durability polyester HDP or polyvinylidene fluoride PVDF, etc.), and then the second baking is carried out. This process forms a multi-layer structure, including zinc layer, chemical conversion layer, primer and topcoat, with a total coating thickness of 5-35 μm. Cooling and squaring: After the coating, the strip is cooled to below 40°C. After quality inspection (such as adhesion and corrosion resistance test), the strip is squared to the required size plate, or processed into corrugated plate, Roman tile and other special-shaped plate by pressing machine.

1. Gloss and matte finishPPGI surfaces can be provided with gloss or matte finish, which reduces reflections and is suitable for specific design needs. Some products realize 3D patterns such as plaster and diamond through emboding process to enhance decoration.2. Pattern customizationSupport customized printing patterns, such as wood grain, brick grain, flowers, grass leaves, etc., to meet personalized needs.

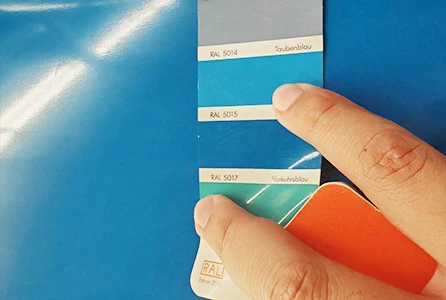

We accept customers to provide samples or pictures for exclusive pattern design.3. Influencing factors of color selectionWeather resistance and color retention: PVDF coating (as described) has the best color retention and is suitable for long-term exposure to UV environment; HDP coating is cost-effective and suitable for general outdoor scenarios.Climate and architectural style: in hot areas, light colors are recommended to reflect heat (e.g., white, light gray); Dark heat absorption is optional in cold areas; Traditional architectural styles often use natural colors, while modern designs tend to favor bright colors with high contrast.

FAQ：Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel ,and our company also is a very professional and technical foreign trade
company for steel products. We have more export experience with competitive price and best after-sales service. Apart from this,we can provide a wide range of steel products to meet the requirement of customer.
